|Place of Origin:||Shanghai|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||paper box or exported wood box|
|Payment Terms:||T/T, negotiate|
|Supply Ability:||500pieces per month|
|Cooling Square:||10-15sqm||Compressor:||Compressor Time Delay Program|
|Safety:||High Pressure Switch||Temperature Drop Arrange:||10c -15C|
|Volts:||220v, 50 Hz||Operating Temp:||64°F ~ 113°F|
residential spot coolers,
portable commercial ac units

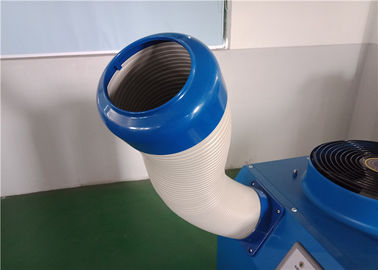

Safety devices portable spot air conditioner 3500w cooling capacity
Spot cooling units: WX35
11900 BTU/HR of Temporary, spot cooling , delivers 11900 BTU/HR of efficient, convenient cooling in a variety of smaller environments where larger units are too much. These air conditioners can also be used in smaller areas for room cooling. A control panel provides ease of use and contains a self-diagnostic function and display, showing operating modes, room and set temperatures, and faults. If an abnormal operation occurs, a visual display of the fault is shown. Caster wheels are included for easy portability.
These portable spot air conditioner are preferred because of their convenience and efficiency -- no water lines need to be introduced in the desired room. Our portable air conditioners use ambient air in the surrounding environment so they don’t need any kind of special intake system to operate. Industrial air coolers created from the refrigeration process is exhausted off the top of the unit and can be ducted into the ceiling plenum or directed out the nearest door or window to exit the room or space.
Heating Setup: Portable heat pump combines both cooling and heating capabilities in a single, self-contained unit, it offers significantly higher performance, along with the usual high levels of Weixuan quality and reliability.
Dehumidifying Setup: Effective water-damage restoration begins with Weixuan . Dry rooms out quickly to reduce the formation of mold and mildew, and keep them from spreading further. A Weixuan portable unit ensures substantially faster recovery than with fans or dehumidifiers, reducing restoration costs.
Best of all, installation is simple. Just roll the unit in, plug it in, attach the dry-air exhaust duct and turn the unit on. Right away it starts doing its job. You'll save time and money thanks to the new dehumidification technology, which is designed to remove moisture and replace it with dry air. Our machine is the perfect solution for protecting valuable equipment and property from moisture damage.
1. Models for outdoor exhaust: Can be connected to outdoor by using the
2. separately sold exhausted duct.
3. Compact: Compact design without worrying about the placement area.
4. Super compact: Super compact design, with a placement area of 0.168m2
5. Little Drain: Up-to-date structure integrated with heat exchanger Significant
6. decrease in drain
7. Snug to wall: Can be placed close to the wall on three sides.
8. Air filter: Easy-to-clean air filter.
9. Durable filter: Large surface area, with no necessary to be frequently maintained.
10. Built-in auto swing mechanism: An auto swing mechanism is built in the unit.
There are two fi lters in the unit. The evaporator fi lter is located at the front of the unit. The condenser fi lter is located at the side of the unit.
1. loosen up 2 bolts on the front fi lter guard.
2. Slide fi lter up and use a vacuum cleaner to remove the dust from the fi lter.
3. If the fi lter is heavily covered with dust and dirt, warm water and mild soap or neutral detergent may be used to wash the fi lter. Do not use any other chemicals to clean fi lter, as they will likely damage the fi lter.
4. Dry the fi lter in a shaded area before replacing it. Do not operate the unit without the fi lter installed and the fi lter guard in the closed position.
5. Replace the clean fi lter and close the fi lter guard.
6. To clean the condenser fi lter, lift up on the side fi lter from the middle bar slightly and then angle the fi lter outwards from the bottom and remove.
7.Use the same cleaning procedure as above (3 – 5).
8. To replace the condenser fi lter, place the top of the fi lter in the guide and slide the fi lter up until the bottom of the fi lter clears the frame. Then push the bottom of fi lter into the guide and let fi lter gently fall inside the guide.
|Capacity Data||Cooling Capacity (W/HR)||3500|
|Fuse Size* (Amps)||7.4|
|Unit Dimensions||Height MM||1100|
|Weight||Net Weight (KG)||60|
|Shipping Weight (KG)||65|
• (1) PORTABLE AIR CONDIRIONER
• (1) Owner’s Manual
• (1) POWER CORD HOLDER
• (1) DISCHARGE / SUPPLY AIR DUCTS
• (1) EXHAUST FLANGE
