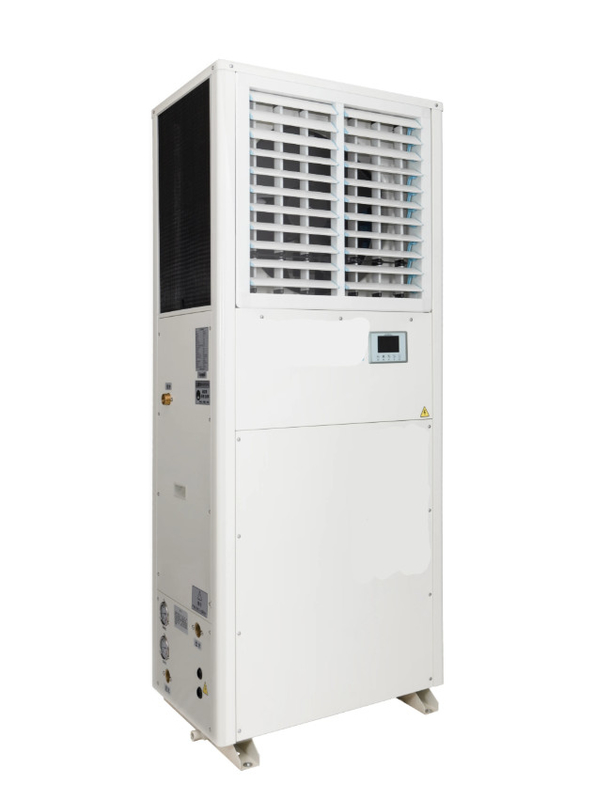

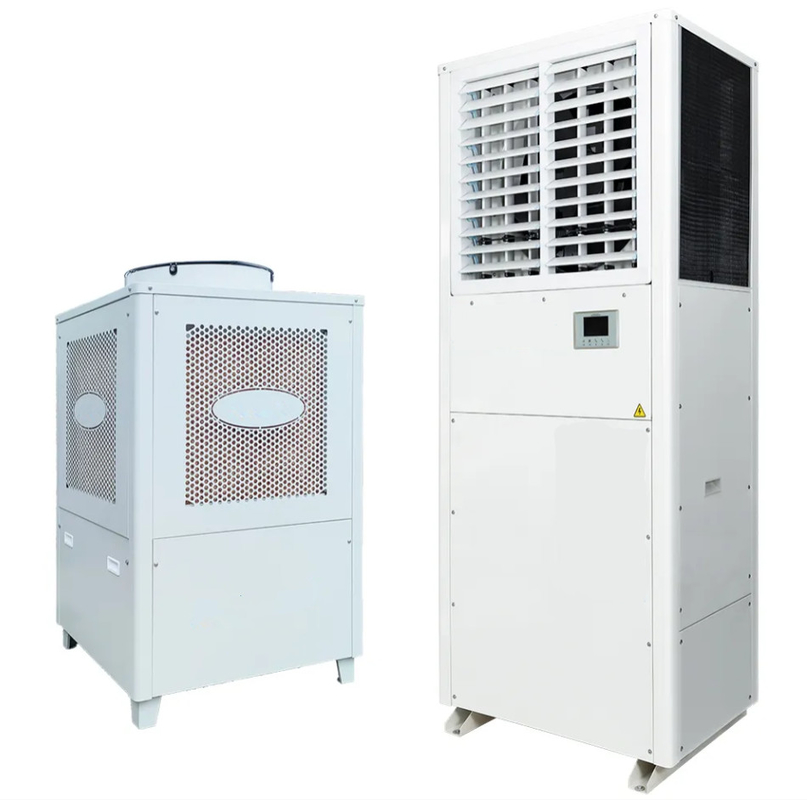

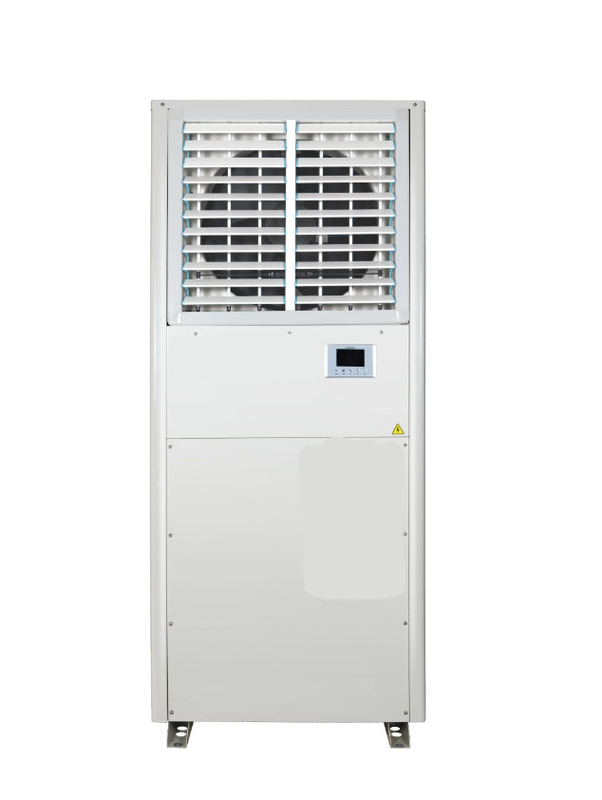

Name: Water Cooled Energy Saving Split Industrial Air Conditioner,25kw Cooling Split Water Cooled Air Condtioner
Brand: Weixuan
SKU: WXWSP-25
Rating: 4.9 (112 reviews)

Home > products > Water Cooled Split Air Conditioner >

Water Cooled Energy Saving Split Industrial Air Conditioner,25kw Cooling Split Water Cooled Air Condtioner

industrial water cooled split air conditioner

25kw water cooled split air conditioner

Place of Origin:

Shanghai

Brand Name:

Weixuan

Certification:

CE, ISO

Model Number:

WXWSP-25

Request A Quote

Water Cooled Energy Saving Split Industrial Air Conditioner,25kw Cooling Split Water Cooled Air Condtioner

Product Details

Benefits:

Free Installation

CURRENT CONSUMPTION:

9.8A

AIR FLOW:

8000/M3/H

COOLING CAPACITY:

25kw

Safety:

With Arc Fault Protection

Volt:

380V

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

negotiate

Packaging Details

paper box or exported wood box

Payment Terms

T/T, negotiate

Supply Ability

500pieces per month

water cooled energy saving industrial air conditioner

Use Cold water to cool the condenser, which make the air conditioner has higher EER than traditional AC, bigger air flow, quicker to cool, saving energy 40%-60% .

save energy 40%-60%

cover 150-200m2/unit

lowest 5 degrees

water evaporative air conditioner is also called low consumption air conditioner and Evaporative condensing air conditioning. It combined working method of water cooling, air cooling and compressor. Firstly, the external machine cool the circulating water through cooling pad water evaporative. After the water temperature drops to normal, it flows through the heat exchange system of the internal machine (at this time, the compressor Has been operated, the refrigerant has been compressed into a high temperature and high pressure state), which takes away most of the heat of the high temperature refrigerant to form a normal temperature refrigerant. The normal temperature refrigerant is throttled by the expansion valve and becomes low temperature and low pressure refrigerant, which is transported to the evaporator of the internal machine to blows out cold wind; The circulating water that has cooled the high-temperature and high-pressure refrigerant is transported to outdoor unit by a water pump. At the same time, it flows through the evaporative cooling pad, thereby turning the high-temperature water into normal temperature water and flowing through the room again. The machine cools down the refrigerant under high temperature and high pressure, and continuously circulates the operation to maximize the energy efficiencyratio, thereby reducing energy consumption.

Specification

Model	WXWCS-25
Rated Volt	380V/50HZ
cooling capacity	25kw
Rated Current	9.2A
Rated Power	4.6KW
max working current	9.8A
max working power	5.2KW
cooling water temp(return/out)	32°C/37°C
the flow of cooling water m/h	4-6
air delivery	10-15m
mas air flow(m3/h)	8000
internal machine size	7705501830mm
external machine size	8008001350mm
weight	160/82KG

Feature

energy saving 40-60% water cool 5hp industrial air conditoner

1. Energy-saving electricity-saving

Electricity consumption is 6kw/h to cool a 200 square meter space, it just is 1/4 energy consumption of traditional air
conditioner. No need for external copper pipe, lower cost.

2. Bigger airflow and bringpurifiedcool air. Cool the air down more quickly, and the cooling efficiency is higher.

3. longer cool air delivery and bigger area to cover

4 Cool the air fast, Decrease temperature quickly.

5. Widely application, one piece can cover 200M2, suitable for product exhibition halls, school canteens, restaurants, workshops
and workshops, exhibitions, farm and other places.

FAQ

1. Are you manufacturer or trade company?

We are professional manufacturers and have done this business for many years.We have a big factory, which is in Shanghai. Welcome to visit our factory any time.

2. What is your main products?

We mainly produce Spot Air Cooler, Portable Air Coolers, Industrial Spot Coolers Commercial Spot Coolers, etc.

3. Can you customize multiple size products ?

Yes,we have special technology and know-how technology, which can produce as customers' requirements.

4. Any Certificates?

We passed CE,ISO,etc.

5. What is your delivery time?

We can make prompt delivery for products in stock. As for customized products or large quantity products, our delivery time is normally 5-8 working days or as your requirement.
