Place of Origin:
Shanghai
Brand Name:
Weixuan
Certification:
CE,ISO
Model Number:
WX35
Video
Easy operating spot cooling units, safety with Anti freezing thermister

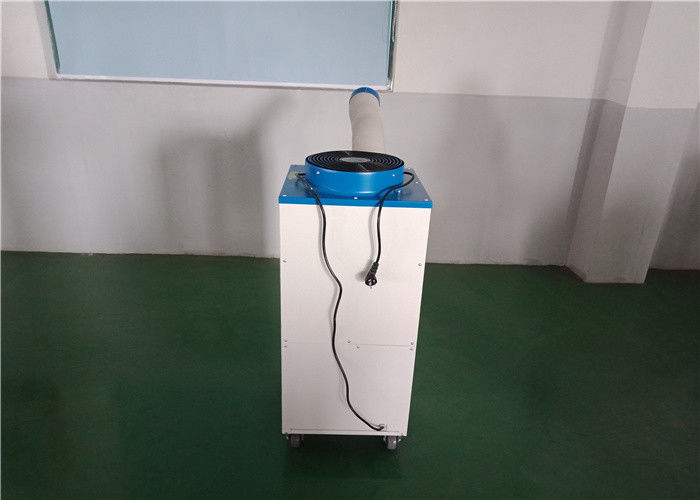

Spot cooling units: WX35
11900 BTU/HR of Temporary, spot cooling convenient cooling in a variety of smaller environments where larger units are too much. This can include offices, conference rooms, computer rooms, laboratories, and factory workstations.
These spot air units are preferred because of their convenience and efficiency -- no water lines need to be introduced in the desired room. Our portable air conditioners use ambient air in the surrounding environment so they don’t need any kind of special intake system to operate. Industrial air coolers created from the refrigeration process is exhausted off the top of the unit and can be ducted into the ceiling plenum or directed out the nearest door or window to exit the room or space. There’s no need to break the bank at Home -- our cheap portable air conditioners can handle virtually all spot-cooling scenarios … set up and operational in less than five minutes.
Safety devices
Compressor overload protector, Anti -freezing thermister, Full drain tank switch, Automatic restart (Power interruption), Compressor time delay program, High pressure switch
Features
Temperature control, Self-diagnostic function, Two speed fan, Optional drain pump kit, Washable fi lters, °F( °C) display, Off -timer.
1. Full intelligent control, humidity adjustable.
2. Embedded portable cover plate, easy to repair and clean, can be artificially added water
3. Dry and wet separation design, independent electronic control system, operation is more secure and reliable.
4. Humidity control, timing control, switch control can be chosen in a variety of ways.
5. The machine adopts the anti-burn and anti-corrosion design, which is very sage and durable.
Specification
| Electrical Data | Voltage/Phase/Hertz | 220/1/50 |
|---|---|---|
| Amperage | 6.4 | |
| Fuse Size* (Amps) | 7.4 | |
| Refrigerant | Type | R410A |
| Unit Dimensions | Height MM | 1100 |
| Weight | Net Weight (KG) | 60 |
| Shipping Weight (KG) | 65 |
Controlling PANEL
1. power button: activates unit when power button is pressed. (fan starts on low speed). if power button is pressed during operation, unit stops.
2. spot/cool button: activates compressor and begins producing cool air 5 seconds after button is pressed. regulates temperature based on outlet cool air temperature.
3. room/cool button: activates compressor and produces cool air 5 seconds after button is pressed. regulates temperature based on inlet ambient air temperature.
4. alarm: alarm indicator lights (blinks) and indicates abnormal system operation. if alarm occurs, compressor stops.system operation stops when alarm light is activated (blinks) longer than 3 minutes.
5. target temp: displays the unit set temperature for room/cool mode only.
