Place of Origin:
Shanghai
Brand Name:
Weixuan
Certification:
CE, ISO
Model Number:
WX85
Brief introduction

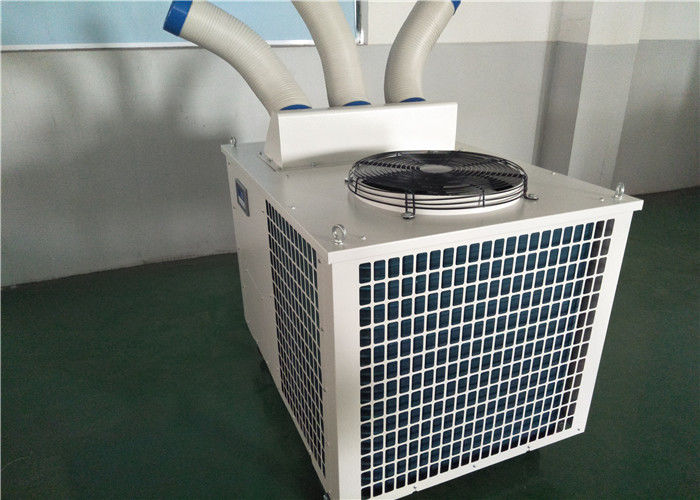

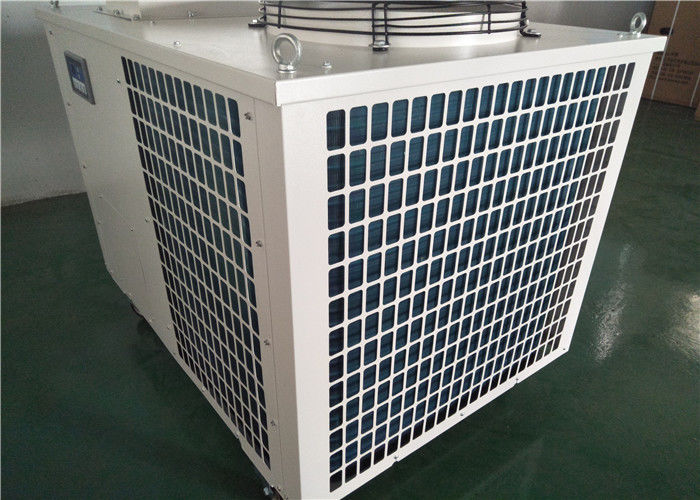

Portable spot cooling Air Conditioner: WX8528900 BTU/HR of Temporary, Portable Spot Cooling. When you need something a little more powerful, our air-cooled portable air-conditioner, the WX85, delivers the supplemental cooling you’re looking for. This unit is simple to install and operate, offering customers a cooling capacity of 28900 BTU/HR. Rugged yet quiet, our air-cooled WX85 performs well in just about any application, including emergency cooling in hospitals or data centers.
Safety Device
1.Internally insulated with fiberglass insulation
2. Thermostatic control with multi-speed fan
3. Heavy duty twin wheel lockable casters for portability
4. Power cord with arc fault protection
5. Condensate jug with overflow protection
6. Compressor time delay
Main Features
Models for outdoor exhaust: Can be connected to outdoor by using the separately sold exhausted duct.
Compact: Compact design without worrying about the placement area.
Super compact: Super compact design
Little Drain: Up-to-date structure integrated with heat exchanger Significant decrease in drain
Snug to wall: Can be placed close to the wall on three sides.
Air filter: Easy-to-clean air filter.
Durable filter: Large surface area, with no necessary to be frequently maintained.
Built-in auto swing mechanism: An auto swing mechanism is built in the unit.
No swing mechanism
| Model | WX85 |
| Refrigeration capacity | 8500W/289000BTU |
| Voltage /Cycle | 380VAC/50Hz |
| Power consumption | 3.25KW |
| Air Volume | 1550m³/h |
| Refrigerant | R22A |
| Noise | 50-55db |
| Working temperature | 18-45℃ |
| Size | 810 * 1050 *1100mm |
| Weight | 120kg |
| Outlet pipe | 3 |
Description in Picture
Top Fan Exhaust Flange
1. Remove the top fan exhaust flange from carton.
2. Place the top fan exhaust flange on the top of air conditioner.
3. Use screws (enclosed inside of box with the top fan exhaust flange) to install the top fan exhaust flange on air conditioner as shown in Figure 5.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--Remote control technical consult
--Free installation DVD
--Maintenance plan
Send your inquiry directly to us
