28900BTU Portable Spot Air Conditioner 2.5T Cooling With Rotary Compressor

28900BTU Portable Spot Air Conditioner 2.5T Cooling With Rotary Compressor

28900BTU Portable Spot Air Conditioner

2.5T Cooling Spot Air Conditioner

Rotary Compressor Spot Air Conditioner

Place of Origin:

Shanghai

Brand Name:

Weixuan

Certification:

CE, ISO

Model Number:

WX85

Contact Us
Request A Quote
Product Details
Benefits:
Stong Cooling
Environtmental Temperature:
18Cto 45C
Type:
Spot Cooling Air Conditioner
Feature:
No Installation
Compressor:
Rotary Compressor
Capacity:
8500w
Product Name:
28900BTU Industrial Spot Portable Air Conditioner,2.5T Cooling Industrial Cooling
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
negotiate
Packaging Details
paper box or exported wood box
Payment Terms
T/T, negotiate
Supply Ability
500pieces per month
Product Description
28900BTU industrial spot portable air conditioner,2.5T cooling industrial cooling


Brief introduction



Portable spot cooling Air Conditioner: WX8528900 BTU/HR of Temporary, Portable Spot Cooling. When you need something a little more powerful, our air-cooled portable air-conditioner, the WX85, delivers the supplemental cooling you’re looking for. This unit is simple to install and operate, offering customers a cooling capacity of 28900 BTU/HR. Rugged yet quiet, our air-cooled WX85 performs well in just about any application, including emergency cooling in hospitals or data centers.




Safety Device



1. Internally insulated with fiberglass insulation

2. Thermostatic control with multi-speed fan

3. Heavy duty twin wheel lockable casters for portability

4. Power cord with arc fault protection

5. Condensate jug with overflow protection

6. Compressor time delay





Main Features



Models for outdoor exhaust: Can be connected to outdoor by using the separately sold exhausted duct.
Compact: Compact design without worrying about the placement area.
Super compact: Super compact design
Little Drain: Up-to-date structure integrated with heat exchanger Significant decrease in drain
Snug to wall: Can be placed close to the wall on three sides.
Air filter: Easy-to-clean air filter.
Durable filter: Large surface area, with no necessary to be frequently maintained.
Built-in auto swing mechanism: An auto swing mechanism is built in the unit.
No swing mechanism





Technical data
Voltage 380VAC/50HZ
Cooling capacity 8500W/28900BUT
Condenser Air flow 1550m3/h,912CFM
Evaporator Air flow 3900m3/h,2294CFM
Rating Current(FLA) 6.5A
Max Current(Fuse zize) 7.0A
Consumption power 2750W
Max consumption power 3250W
Compressor Fully enclosed rotary
Condensate Tank Capacity External water pipe
Refrigerant Type R22/R410A
Refrigerant 2000g
Operating Range 18OC~45OC
Dimensions 810mm*1050mm*1000mm
Weight 120kg


Description in Picture

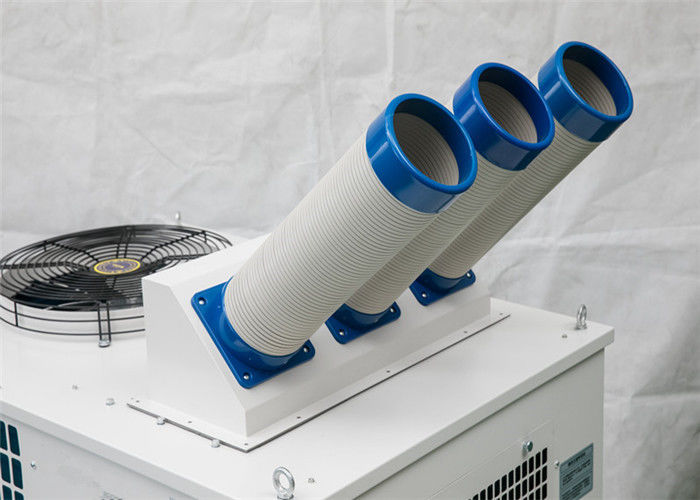

28900BTU Portable Spot Air Conditioner 2.5T Cooling With Rotary Compressor 0




Top Fan Exhaust Flange



1. Remove the top fan exhaust flange from carton.

2. Place the top fan exhaust flange on the top of air conditioner.

3. Use screws (enclosed inside of box with the top fan exhaust flange) to install the top fan exhaust flange on air conditioner as shown in Figure 5.


General Safety Information

DO NOT use the unit in wet environments, such as a laundry room, to avoid the risk of electrical shock.
1. DO NOT operate the unit with wet or damp hands.
2. DO NOT allow chemical substances to come into contact with the unit.
3. DO NOT operate the unit in the presence of fl ammable substances or vapors such as alcohols, pesticides, gasoline, etc.

DO NOT operate the unit in explosive or fl ammable environments
1. DO NOT use the plug to start and to stop the unit. Always use the control panel to start and to stop the unit.
2. Always turn off the unit when it is not in use and unplug the power plug from the electrical outlet
3. Always turn the unit off and unplug the main power plug from the electrical outlet before cleaning, moving or performing maintenance.
4. AVOID the use of adapter plugs or extension cords. If it is necessary to use an extension cord or an adapter plug to operate the unit, ensure that they are correctly rated for the application.


Our services

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual.



1. Pre-service

24 Hours online service for your consult.

Help choose right model,and a series of service,person,advise.



2. Middle service

--Give you best offer

--Provide discount for many sets order

--Do customer's request:

--Can provide invoice value as you like to decrease your tax.



3. After sale service

--Remote control technical consult

--Free installation DVD

--Maintenance plan
