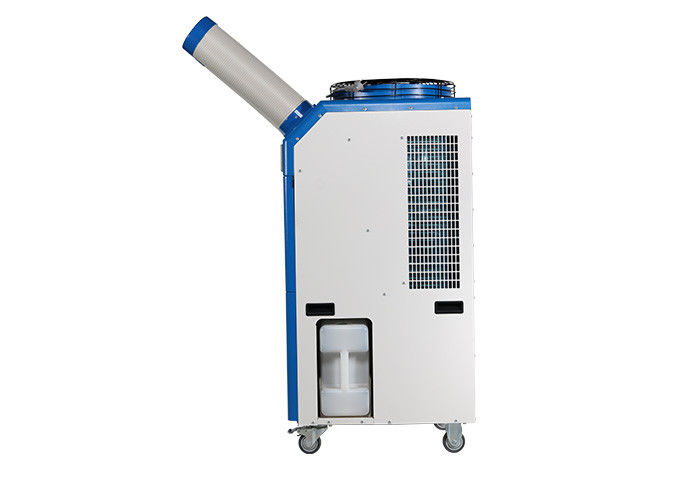

6.5KW Single Phase Industrial Spot Cooling Systems Temporary Air Conditioning

6.5KW Single Phase Industrial Spot Cooling Systems Temporary Air Conditioning

6.5KW Industrial Spot Coolers

Single Phase Spot Cooling Unit

Three Ducts Industrial Spot Coolers

Place of Origin:

Shanghai

Brand Name:

Weixuan

Certification:

CE, ISO

Model Number:

WX65

Contact Us
Request A Quote
Product Details
Ducts:
Three
Environtmental Temperature:
64F To 113F
Type:
Spot Air Cooling
Use:
Office Cooling
Compressor:
Rotary Compressor
Voltage:
220V
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
negotiation
Packaging Details
paper box or exported wood box
Payment Terms
T/T, negotiate
Supply Ability
500pieces per month
Product Description



6.5KW Single Phase Spot Air Cooler temporary air conditioner



Brief introduction
Our coolers come with simple to connect ducting accessories, which allows users to easily vent air to the outside or an unoccupied space for effective operation. Our units also feature a digital control panel for easy operation and use only environmentally friendly refrigerant (R410A). Meanwhile, spot air cooler system includes everything needed for a single point cooling station that offers a low cost, reliable, maintenance free solution to a variety of industrial spot cooling problems. With the turn of a knob , you can select a precise and comfortable temperature in the room.




Features

1. Full intelligent control, humidity adjustable.

2. Embedded portable cover plate, easy to repair and clean, can be artificially added water

3. Dry and wet separation design, independent electronic control system, operation is more secure and reliable.

4. Humidity control, timing control, switch control can be chosen in a variety of ways.
5. Metal filter
6. Free installation
7. Easy portable
8. With water tank
9. Water pump is optional


FEATURES



1. All-steel housing with self-contained pulleys is durable, light and flexible.

2. Large air volume, strong cooling, low energy consumption, low noise, long life, stable operation.

3. The use of advanced R410A refrigerant, green, healthy and comfortable.

4. The use of advanced imported compressors can be effectively cooled at a high temperature of 45°C.

5. The use of automatic control system, with automatic diagnostics to effectively prevent adverse operations and other conditions on the damage to the machine.



CAUTIONS



1. This product is industrial cooling air conditioning equipment, non-domestic products.

2. This product is a local cooling air conditioning equipment, cooling and cooling on the same machine, different from the traditional home split air conditioner.

3. The design and use environment of this product is 18-45°C. Below or above this temperature range, the equipment cannot operate normally, and the non-product itself is faulty.

4. The noise of this product is 60-70 decibels, which is not suitable for occasions where noise is required (such as bedrooms, conference rooms, offices, libraries, etc.).

5, before purchase, please confirm the product parameters, including product voltage, frequency, size, weight, air flow, cooling capacity, etc. have been marked in the product, please check carefully.





Safety Devices



Compressor overcurrent protection Yes

High pressure safety w/Auto reset Yes

Fan Motor Protection Yes

Anti-Freeze Thermostat Yes

LED Thermostat Yes

Fan Mode Switch Yes

Automatic Tank Shut Off Yes

Audible Tank Shut Off Alarm Yes



Technical data

Model WX65
Refrigeration capacity

6500W/22000BTU

Voltage /Cycle 220VAC/50Hz
Power consumption 2.4KW
Air Volume 470m³/h
Refrigerant R410A
Noise 50-55db
Working temperature 18-45℃
Size 560 * 63 *1260mm
Weight 100kg
Outlet pipe 3




Description in Picture
6.5KW Single Phase Industrial Spot Cooling Systems Temporary Air Conditioning 0


Packaging Details
Packing Size: W645mm*D630mm*H1260mm
Package:Paper box or wood carton



Unpacking
After unpacking the unit, carefully inspect unit for any damage that may have occurred during transit. Check for any loose, missing, or damaged parts.



General Safety Information
DO NOT use the unit in wet environments, such as a laundry room, to avoid the risk of electrical shock.
1. DO NOT place any foreign objects on the unit.
2. DO NOT operate the unit with wet or damp hands.
3. DO NOT allow chemical substances to come into contact with the unit.
4. DO NOT operate the unit in the presence of fl ammable substances or vapors such as alcohols, pesticides, gasoline, etc.

DO NOT operate the unit in explosive or fl ammable environments
1. DO NOT use the plug to start and to stop the unit. Always use the control panel to start and to stop the unit.
2. Always turn off the unit when it is not in use and unplug the power plug from the electrical outlet
3. Always turn the unit off and unplug the main power plug from the electrical outlet before cleaning, moving or performing maintenance.
4. AVOID the use of adapter plugs or extension cords. Consult a local qualifi ed lectrician and all local electrical codes to ensure proper setup. Any extension cord used with this device must be rated for a minimum of 220V
5. DO NOT unplug the unit by pulling on the electrical cord. Keep electrical cord away from heat sources and always completely unroll the cord to avoid overheating.
